RENTAL AIR CONDITIONERS: 60-TON AC UNIT

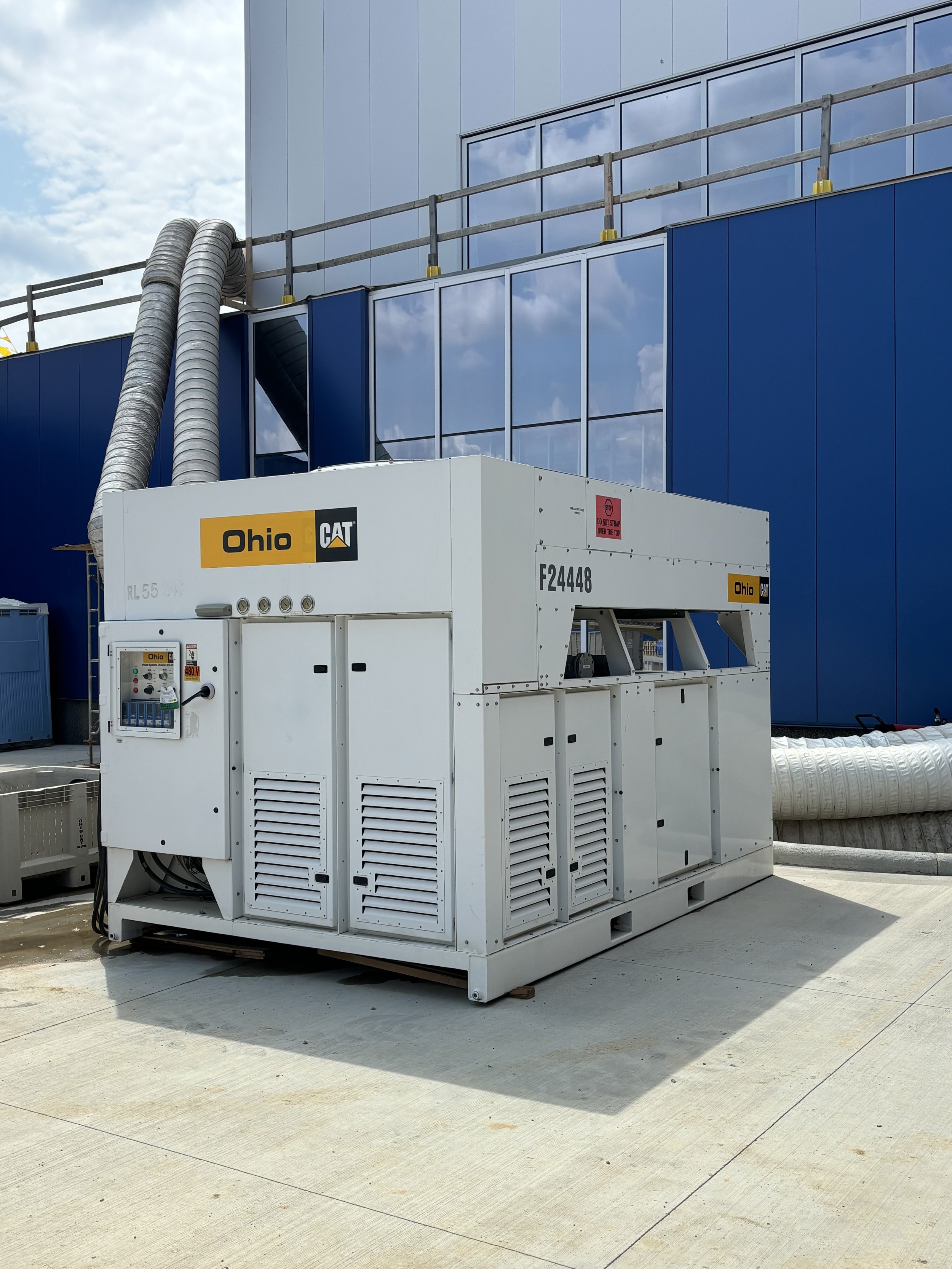

60-Ton Rental AC Unit
Finding a cooling solution in an emergency or during planned maintenance can often be challenging. Cooling units come in a broad range of sizes and capacities. Choosing the appropriate air conditioning unit requires knowing the size of the space and the desired temperature you are looking to achieve.
At Temperature Control Rental Solutions (TCRS), we take out all the guesswork, as our team of experts is ready to walk you through the entire rental process. We can help you decide which rental unit is the most suitable for your specific application.
How the TCRS 60-Ton Air Conditioning Unit Works
Our air-conditioning rental units are self-contained units that operate with high efficiency and low noise. These units work by drawing in outside or return air. The units are set up with Camlock electrical connections and flexible ductwork for ease of installation.
The specialty design allows for larger temperature drops on 100% ambient conditions compared to standard air conditioners. The blower has a vari-drive controller allowing the airflow to be adjusted from 50% up to 100% of the design flow to match your application. Temperature can be controlled by supplying air, returning air, or remotely. Condensers are designed to work in extreme environments up to 120°F.
Specifications for Our 60-Ton Air Conditioner Rentals
Our 60-ton air conditioning units are ideal for outdoor and indoor applications. They provide a cooling solution to large spaces in various applications and industries. These units are designed with variable speed blowers allowing us to meet the demands of many industries.
Primary specifications include:
Dimensions: These air conditioning units measure 8'4" high, 8' wide, and 11'7" long.
Capacity: These units have a cooling capacity of 60 tons.
Weight: The total shipping weight for the 60-ton models is 8,400 pounds.
Temperature input: 67 to 80 degrees Fahrenheit
Temperature output: 51 to 52.6 degrees Fahrenheit
Common Applications of the 60-Ton Air Conditioning Unit
Industrial and commercial spaces.
Hospitals and universities.
Turbine and motor cooling.
New construction and dehumidification.
Warehouse facilities.
Outdoor events and tents.
Restoration.
Technical Specifications
| Electrical
Cooling load Heating load Minimum circuit ampacity Recommended Fuse / Circuit Breaker Rating |
160 amps 200 amps 220 amps 250 amps |
| System Control
Outside air damper Space temperature control Discharge air temperature control Return air temperature control |
Manual Standard Standard (4 x 20" Supply Air Duct) Standard (4 x 20" Return Air Duct) |
| Fan Data
Design air flow Maximum air flow Design total static pressure Fan type Fan control Motor power / speed Filter (Reusable) Duct Connections (8) |
14,500 cfm @ 2 in wg 23,000 crm @ 3 in wg 7 in wg Reverse incline belt driven VFD 30 hp / 1725 rpm 2 Piece Caged Media 19.2" ea. |
| Cooling Data
Design capacity Entering air temp (dry bulb/wet bulb) Leaving air temp (dry bulb/wet bulb) Coil construction Rows Fins per inch |
60 Tons 80.0 / 67.0°F 52.6 / 51.0°F Cooper tube / Aluminum fins 8 12 |
| Heating Data
Type Capacity Heating |
Electric 130 kW 444 MBH |
| Compressor Data
Type Crankcase heat Refrigerant |
Twin Scrolls 140 watts R-410A |
Rental-Ready for Your Needs
Whether you require an air conditioning unit in an emergency, a planned shutdown, or any other situation, TCRS can meet all of your needs. Regardless of the scenario, we can customize a rental agreement that lasts a single day, weeks, several months, or an entire season. Our systems are user-friendly and easy to operate, meaning you don't need extensive equipment expertise to use them.
Find Out How Temperature Control Rental Solutions Can Help You
For more than 30 years, TCRS has provided expert assistance and technical support to customers while meeting all their air conditioning needs. To learn more about our equipment and solutions, call us at 877-343-8277 or contact us online today.
