RENTAL CHILLERS: 300-Ton Air -Cooled Chiller

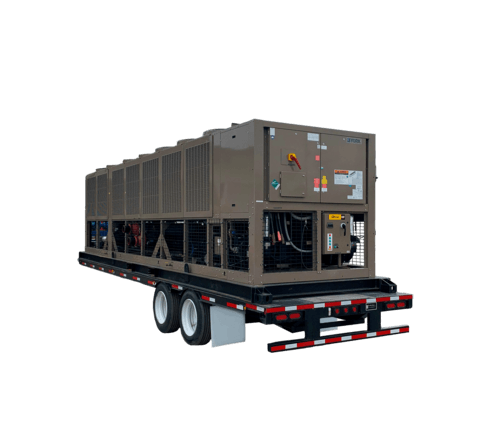

300-Ton Air-Cooled Chiller
An air-cooler is a refrigeration unit that absorbs heat from water and air, whether in commercial buildings, warehouses, or industrial sites. Air-cooled chillers are far more energy- and cost-efficient than your typical air conditioning unit, especially for medium or large buildings or hardwearing industrial applications.
Our team of expert representatives at Temperature Control Rental Solutions (TCRS) will help you choose the correct rental chiller for your unique application. We have a wide selection of chillers to choose from, ranging from 30 to 500+ tons. We have decades of experience recommending suitable chillers for unique industrial applications.
How Our 300-Ton Air-Cooled Chillers Work
An air-cooled chiller unit has four main components — a compressor, condenser, expansion valve and evaporator. First, the compressor pressurizes a refrigerant, increasing its temperature and propelling warm water through the cooling system.
Then, the pressurized refrigerant moves to the condenser, where it expels excess heat captured from the building's water and cools down with the help of fans. It then moves to the expansion valves to become depressurized. Once the expansion valves depressurize the refrigerant, its temperature drops even further.
Finally, the cooled refrigerant runs through the evaporator tank. When it emerges, it is efficiently cooled and expelled from the unit. Once the cool water is used, it returns to the air-cooled chiller to begin the cooling process again. You can harness the system's excess heat or release it into the atmosphere.
Benefits of Our 300-Ton Chiller Rentals
Whether you require a 300-ton air-cooled rental chiller to cool a large commercial building or a bed of concrete, the benefits of a heavy-duty air-cooled chiller remain consistent:
Low-maintenance: An air chiller is easy to maintain without a cooling tower. It also has fewer components than a water-cooled chiller system.
Energy-efficient: The excess heat from the air-cooled chiller can reuse the heat for industrial or construction applications.
Cost-effective: Air-cooled chillers do not require water to operate, making them a cost-effective cooling solution due to a significant decrease in water consumption.
Specifications for Our 300-Ton Air-Cooled Rental Chillers
Our 300-ton air-cooled rental chiller is a compact and robust industrial cooling system. Its core specifications include:
Capacity: The 300-ton unit has a maximum capacity of 302.9 tons.
Temperature range: The chilled water output temperatures range from 0°F to 65°F.
Dimensions: This unit measures 33'8'' length x 7'7'' width x 8'6'' height.
Weight: The operating weight is 29,920 pounds.
Flow: The chiller's minimum/maximum flow is 300 to 1,200 gallons per minute.
Common Applications for 300-Ton Air-Cooled Chillers
Our 300-ton air-cooled rental chiller is a cost-effective and efficient solution for mid-to-large-sized buildings, warehouses, and heavy-duty industrial applications. Learn more about some of the typical applications:
Technical Specifications
| Evaporator Data |
EWT(°F) LWT(°F) Design Flow Rate(gpm) Pressure Drop (ft.) Fluid Water Volume(gal.) |
54.0 44.0 725.9 15.2 Water 236.0 |
| Condenser Data |
Ambient Temp.(°F) |
95.0 |
| Electrical Data |
Volts/Ph/Hz Min. Circuit Ampacity Recommended Fuse/CB Rating Max. Dual Element Fuse Size(Amps) |
460/3/60 540 FLA(Chiller) 52 FLA(Pump) 700 800 |
| Min/Max Flow GPM |
Min Flow Max Flow |
300 1200 |
| General |
Compressor Type Capacity Refrigerant Chilled Water/Brine Temperature Range |
4 Variable-Drive Screw 302.9 Tons R134a 0°F-65°F |
Contact TCRS Today to Schedule a Rental
Our expert rental representatives at TCRS are on standby to help you select the suitable chiller for your industrial application. Once you've chosen your chiller, we'll efficiently deliver and set up your unit on your behalf. We provide 24/7 emergency support solutions with all of our rentals should you experience complications.
Call us today at 877-343-8277 or contact us online to learn more about our rental-ready 300-ton air-cooled chiller units.
