RENTAL CHILLERS: 527-Ton Air -Cooled Chiller

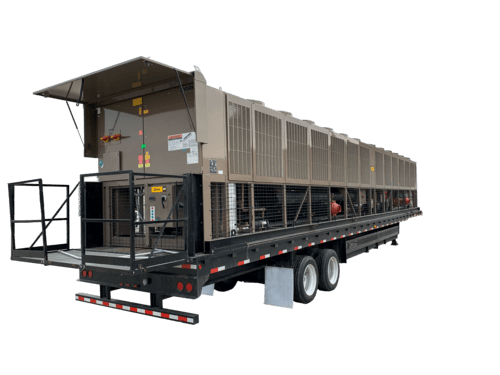

527-Ton Air-Cooled Chiller
From construction to warehousing and utilities, many industries rely on air-cooled chillers. This equipment cools warehouse facilities, large-scale outdoor events, temporary office spaces and more. Whatever your requirements, a rental can help support your day-to-day operations and keep your job site or event comfortable for staff and visitors.
Temperature Control Rental Solutions is your source for 527-ton air-cooled chiller rentals. Whatever your application, we'll help you get the equipment you need quickly.
How Air-Cooled Chillers Work
An air-cooled chiller removes excess heat from the cooling system and works in tandem with a refrigeration system. After the water flowing through an air handler or process system has cycled through, it becomes warm and enters the chiller. It's then processed in the evaporator, which absorbs the water's heat and evaporates liquid refrigerant into a low-pressure gas before converting it to a high-pressure gas.
The system uses fans to get rid of the heat outside. This condenses the refrigerant becoming a liquid again that moves through the evaporator to repeat the cycle.
Benefits of Using a 527-Ton Air-Cooled Chiller
When you rent an air-cooled chiller to support your operations, you gain several key benefits:
Lower maintenance costs: Air-cooled chillers offer a long service life, keeping your overall maintenance expenses minimal.
Increased efficiency: These chillers optimize cooling efficiency, helping to maximize their effectiveness in large-scale spaces with enormous output.
Air-Cooled Chiller Applications
You can use an air-cooled chiller for a broad range of applications across multiple industries, including:
Reach out to us to discuss your specific needs and identify the best options for your requirements.
Technical Specifications
| Evaporator Data |
EWT(°F) LWT(°F) Design Flow Rate(gpm) Pressure Drop (ft.) Fluid Water Volume(gal.) |
54.0 44.0 1230 29.4 Water 318.0 |
| Condenser Data |
Ambient Temp.(°F) |
95.0 |
| Electrical Data |
Volts/Ph/Hz Min. Circuit Ampacity Recommended Fuse/CB Rating Max. Dual Element Fuse Size(Amps) |
460/3/60 878 FLA(Chiller) 77 FLA(Pump) 1200 1600 |
| Min/Max Flow GPM |
Min Flow Max Flow |
600 1300 |
| General |
Compressor Type Capacity Refrigerant Chilled Water/Brine Temperature Range |
4 Screw 513 Tons R134a 0°F-65°F |
Reach out for Your Rental Today
If you're looking for a provider you can trust for your chiller rental needs, Temperature Control Rental Solutions is here to help. We stand out for our fast response times and reliable equipment, delivering top-quality service you can trust for urgent cooling solutions. We're ready whenever you need us with 24/7 service.
For more information on our solutions or to get a rental, contact us today.
